本文主要是为了更深入了解一下类结构中的cache_t。
正文
回顾
在之前的文章——iOS底层探索：isa走向及类结构探索，我们已经了解了iOS中类的结构模型，OC类的示意图如下：
今天我们主要对类结构中的cache_t进行进一步的探索，让我们来看看cache_t中究竟存在什么奥秘~
cache_t探索
从变量的定义上我们就可以大胆猜测一下，cache_t可能是用来做缓存的，但是究竟缓存了什么？如何进行缓存的？我们目前还无法得知。那么接下来，我们就一步步揭下它的面纱。
1.cache_t是什么？
以下代码摘自OC源码，
cache_t结构体的定义：
struct cache_t {
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_OUTLINED
explicit_atomic<struct bucket_t *> _buckets;
explicit_atomic<mask_t> _mask;
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
explicit_atomic<uintptr_t> _maskAndBuckets;
mask_t _mask_unused;
// How much the mask is shifted by.
static constexpr uintptr_t maskShift = 48;
// Additional bits after the mask which must be zero. msgSend
// takes advantage of these additional bits to construct the value
// `mask << 4` from `_maskAndBuckets` in a single instruction.
static constexpr uintptr_t maskZeroBits = 4;
// The largest mask value we can store.
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
// The mask applied to `_maskAndBuckets` to retrieve the buckets pointer.
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
// Ensure we have enough bits for the buckets pointer.
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS, "Bucket field doesn't have enough bits for arbitrary pointers.");
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
// _maskAndBuckets stores the mask shift in the low 4 bits, and
// the buckets pointer in the remainder of the value. The mask
// shift is the value where (0xffff >> shift) produces the correct
// mask. This is equal to 16 - log2(cache_size).
explicit_atomic<uintptr_t> _maskAndBuckets;
mask_t _mask_unused;
static constexpr uintptr_t maskBits = 4;
static constexpr uintptr_t maskMask = (1 << maskBits) - 1;
static constexpr uintptr_t bucketsMask = ~maskMask;
#else
#error Unknown cache mask storage type.
#endif
#if __LP64__
uint16_t _flags;
#endif
uint16_t _occupied;
public:
static bucket_t *emptyBuckets();
struct bucket_t *buckets();
mask_t mask();
mask_t occupied();
void incrementOccupied();
void setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask);
void initializeToEmpty();
unsigned capacity();
bool isConstantEmptyCache();
bool canBeFreed();
#if __LP64__
bool getBit(uint16_t flags) const {
return _flags & flags;
}
void setBit(uint16_t set) {
__c11_atomic_fetch_or((_Atomic(uint16_t) *)&_flags, set, __ATOMIC_RELAXED);
}
void clearBit(uint16_t clear) {
__c11_atomic_fetch_and((_Atomic(uint16_t) *)&_flags, ~clear, __ATOMIC_RELAXED);
}
#endif
#if FAST_CACHE_ALLOC_MASK
bool hasFastInstanceSize(size_t extra) const
{
if (__builtin_constant_p(extra) && extra == 0) {
return _flags & FAST_CACHE_ALLOC_MASK16;
}
return _flags & FAST_CACHE_ALLOC_MASK;
}
size_t fastInstanceSize(size_t extra) const
{
ASSERT(hasFastInstanceSize(extra));
if (__builtin_constant_p(extra) && extra == 0) {
return _flags & FAST_CACHE_ALLOC_MASK16;
} else {
size_t size = _flags & FAST_CACHE_ALLOC_MASK;
// remove the FAST_CACHE_ALLOC_DELTA16 that was added
// by setFastInstanceSize
return align16(size + extra - FAST_CACHE_ALLOC_DELTA16);
}
}
void setFastInstanceSize(size_t newSize)
{
// Set during realization or construction only. No locking needed.
uint16_t newBits = _flags & ~FAST_CACHE_ALLOC_MASK;
uint16_t sizeBits;
// Adding FAST_CACHE_ALLOC_DELTA16 allows for FAST_CACHE_ALLOC_MASK16
// to yield the proper 16byte aligned allocation size with a single mask
sizeBits = word_align(newSize) + FAST_CACHE_ALLOC_DELTA16;
sizeBits &= FAST_CACHE_ALLOC_MASK;
if (newSize <= sizeBits) {
newBits |= sizeBits;
}
_flags = newBits;
}
#else
bool hasFastInstanceSize(size_t extra) const {
return false;
}
size_t fastInstanceSize(size_t extra) const {
abort();
}
void setFastInstanceSize(size_t extra) {
// nothing
}
#endif
static size_t bytesForCapacity(uint32_t cap);
static struct bucket_t * endMarker(struct bucket_t *b, uint32_t cap);
void reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld);
void insert(Class cls, SEL sel, IMP imp, id receiver);
static void bad_cache(id receiver, SEL sel, Class isa) __attribute__((noreturn, cold));
};
bucket_t****结构体的定义：
struct bucket_t {
private:
// IMP-first is better for arm64e ptrauth and no worse for arm64.
// SEL-first is better for armv7* and i386 and x86_64.
#if __arm64__
explicit_atomic<uintptr_t> _imp;
explicit_atomic<SEL> _sel;
#else
explicit_atomic<SEL> _sel;
explicit_atomic<uintptr_t> _imp;
#endif
// Compute the ptrauth signing modifier from &_imp, newSel, and cls.
uintptr_t modifierForSEL(SEL newSel, Class cls) const {
return (uintptr_t)&_imp ^ (uintptr_t)newSel ^ (uintptr_t)cls;
}
// Sign newImp, with &_imp, newSel, and cls as modifiers.
uintptr_t encodeImp(IMP newImp, SEL newSel, Class cls) const {
if (!newImp) return 0;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
return (uintptr_t)
ptrauth_auth_and_resign(newImp,
ptrauth_key_function_pointer, 0,
ptrauth_key_process_dependent_code,
modifierForSEL(newSel, cls));
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
return (uintptr_t)newImp ^ (uintptr_t)cls;
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
return (uintptr_t)newImp;
#else
#error Unknown method cache IMP encoding.
#endif
}
public:
inline SEL sel() const { return _sel.load(memory_order::memory_order_relaxed); }
inline IMP imp(Class cls) const {
uintptr_t imp = _imp.load(memory_order::memory_order_relaxed);
if (!imp) return nil;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
SEL sel = _sel.load(memory_order::memory_order_relaxed);
return (IMP)
ptrauth_auth_and_resign((const void *)imp,
ptrauth_key_process_dependent_code,
modifierForSEL(sel, cls),
ptrauth_key_function_pointer, 0);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
return (IMP)(imp ^ (uintptr_t)cls);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
return (IMP)imp;
#else
#error Unknown method cache IMP encoding.
#endif
}
template <Atomicity, IMPEncoding>
void set(SEL newSel, IMP newImp, Class cls);
};
大致浏览代码，我们可以发现：

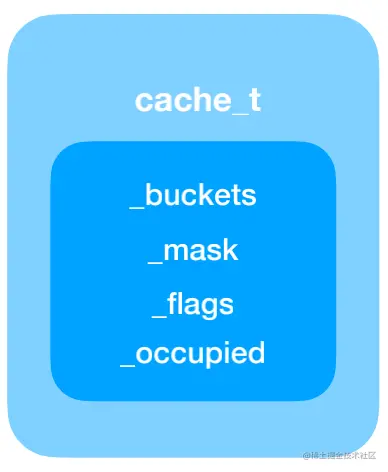

在macos系统、模拟器环境下，cache_t的结构如下：
关键字段解释：
- _buckets： 用于存储
bucket_t的数组。其中bucket_t是包含SEL和IMP的

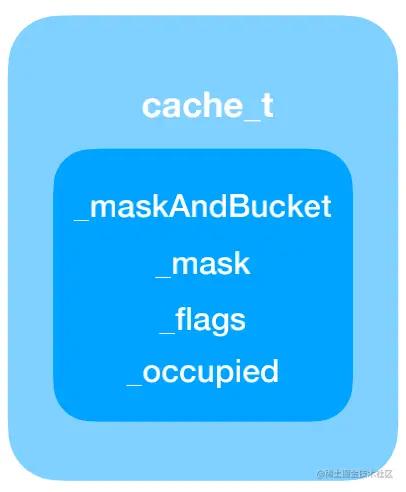

在arm64的真机环境下，cache_t的结构如下：
关键字段解释：
- _maskAndBuckets：
_buckets和_mask被合并成了_maskAndBuckets。苹果在真机的环境下进行了优化，使用联合体位域的形式，可以进一步减少内存占用
总结：cache_t是用来对方法进行缓存的
2.cache_t如何进行缓存？
在上个步骤中我们了解到，cache_t的作用是是对方法进行缓存，那么它究竟是如何进行的呢？
继续探索，在上述的源码中我们可以看到有_occupied这个字段，其中涉及到这样两个方法：

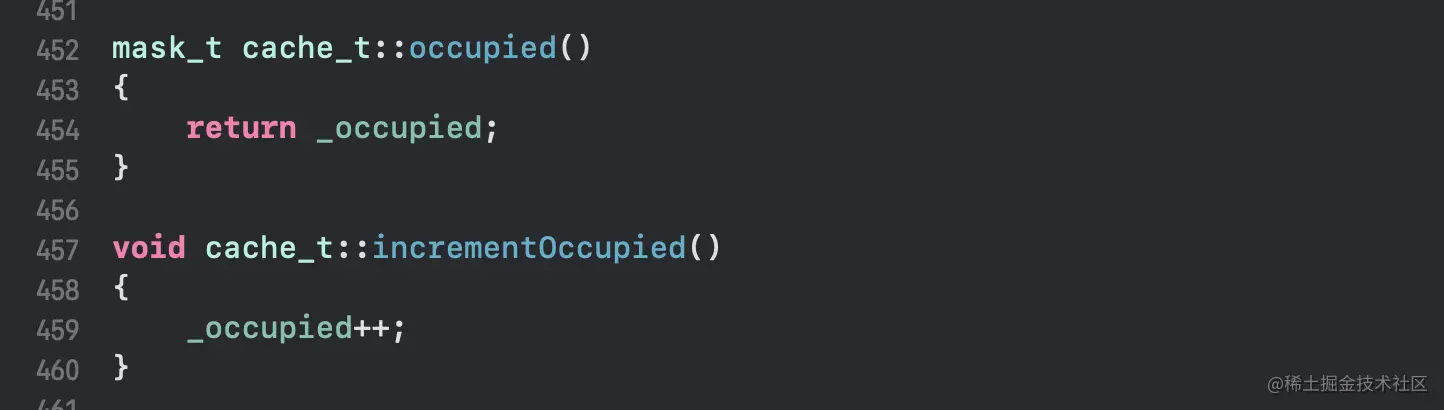

我们大致可以猜测到，这个_****occupied字段应该是目前缓存的方法的个数。然后我们全局搜索incrementOccupied();在OC源码中找到如下内容：
ALWAYS_INLINE
void cache_t::insert(Class cls, SEL sel, IMP imp, id receiver)
{
#if CONFIG_USE_CACHE_LOCK
cacheUpdateLock.assertLocked();
#else
runtimeLock.assertLocked();
#endif
ASSERT(sel != 0 && cls->isInitialized());
// Use the cache as-is if it is less than 3/4 full
mask_t newOccupied = occupied() + 1;
unsigned oldCapacity = capacity(), capacity = oldCapacity;
if (slowpath(isConstantEmptyCache())) {
// Cache is read-only. Replace it.
if (!capacity) capacity = INIT_CACHE_SIZE;
reallocate(oldCapacity, capacity, /* freeOld */false);
}
else if (fastpath(newOccupied + CACHE_END_MARKER <= capacity / 4 * 3)) {
// Cache is less than 3/4 full. Use it as-is.
}
else {
capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;
if (capacity > MAX_CACHE_SIZE) {
capacity = MAX_CACHE_SIZE;
}
reallocate(oldCapacity, capacity, true);
}
bucket_t *b = buckets();
mask_t m = capacity - 1;
mask_t begin = cache_hash(sel, m);
mask_t i = begin;
// Scan for the first unused slot and insert there.
// There is guaranteed to be an empty slot because the
// minimum size is 4 and we resized at 3/4 full.
do {
if (fastpath(b[i].sel() == 0)) {
incrementOccupied();
b[i].set<Atomic, Encoded>(sel, imp, cls);
return;
}
if (b[i].sel() == sel) {
// The entry was added to the cache by some other thread
// before we grabbed the cacheUpdateLock.
return;
}
} while (fastpath((i = cache_next(i, m)) != begin));
cache_t::bad_cache(receiver, (SEL)sel, cls);
}
void cache_fill(Class cls, SEL sel, IMP imp, id receiver)
{
runtimeLock.assertLocked();
#if !DEBUG_TASK_THREADS
// Never cache before +initialize is done
if (cls->isInitialized()) {
cache_t *cache = getCache(cls);
#if CONFIG_USE_CACHE_LOCK
mutex_locker_t lock(cacheUpdateLock);
#endif
cache->insert(cls, sel, imp, receiver);
}
#else
_collecting_in_critical();
#endif
}
不难发现，insert方法就是cache_t创建缓存的过程，其中主要的操作步骤：
-
第一次会初始化INIT_CACHE_SIZE大小的空间。
-
如果bucket在buckets中的占用比大于3/4，则进行扩容，该扩容后空间大小为当前大小的两倍，注意扩容操作会重新开辟空间，如果触发扩容操作，原先的缓存就会被清除。
-
根据
cache_hash(sel, m);方法，计算存储的哈希值下标，将方法存入bucket中。
