Java Jsp+Servlet+mysql实现的宿舍管理系统（功能：房间管理、宿舍管理、信息查询、信息维护、系统管理）

用户1793837561375
641 阅读5分钟

@TOC

Jsp宿舍管理系统

学生宿舍管理是当代学校中不可或缺的组成部分，在信息化飞速发展的今天，它的出现已经成了一种必然，本文将从宿舍管理系统的历史和现状进行分析，以求证本系统的设计具有实际的意义，并得到它在未来的发展，从而跟上时代的脚步，做出一个高质量的、安全性好的宿舍管理系统，使其不仅能满足学校现在的需要，也能满足将来一段时间的需要。

实现功能截图

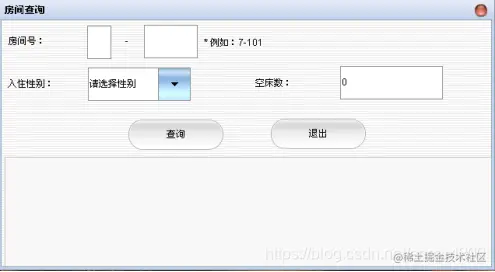

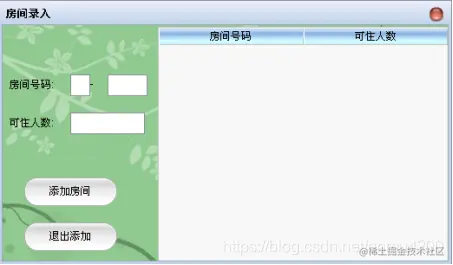

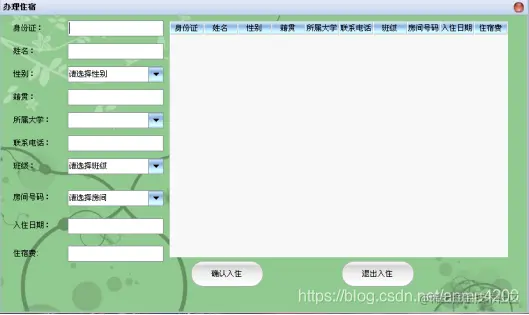

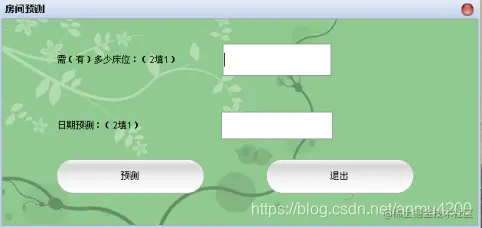

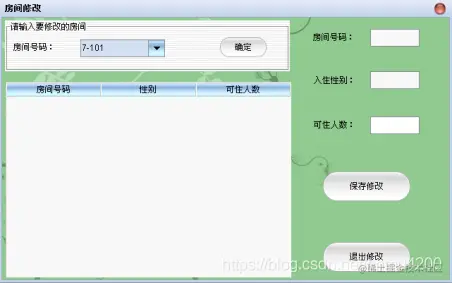

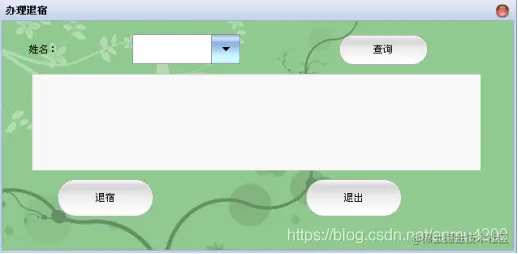

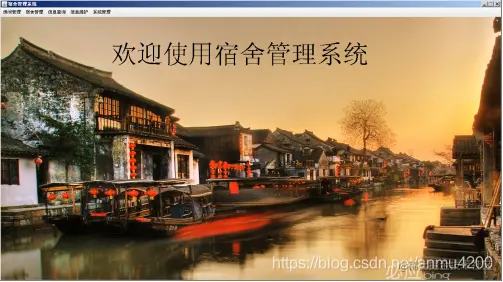

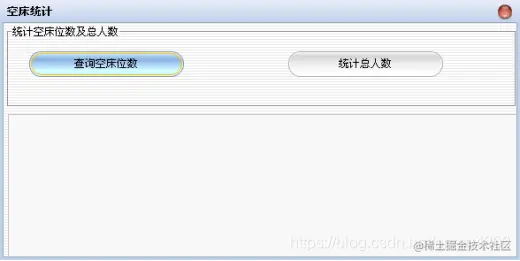

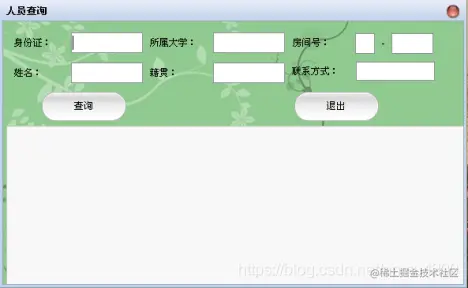

宿舍管理主界面： 在这里插入图片描述 房间录入： 在这里插入图片描述 房间更改： 在这里插入图片描述 房间删除： 在这里插入图片描述 房间预测： 在这里插入图片描述 办理住宿： 在这里插入图片描述 调换房间： 在这里插入图片描述 办理退宿： 在这里插入图片描述 房间查询： 在这里插入图片描述 人员查询： 在这里插入图片描述 统计信息： 在这里插入图片描述 信息维护： 在这里插入图片描述

系统功能以及流程图

宿舍管理系统主要实现的功能有：房间管理、宿舍管理、信息查询、信息维护等。

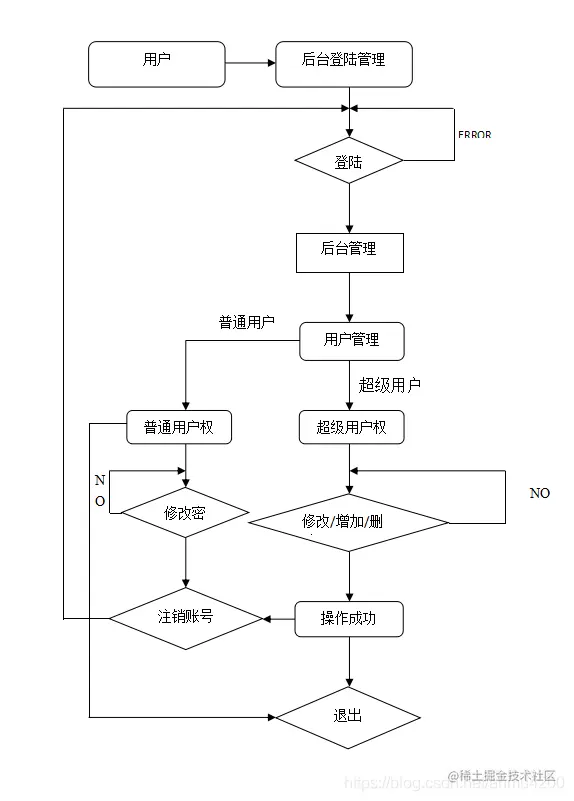

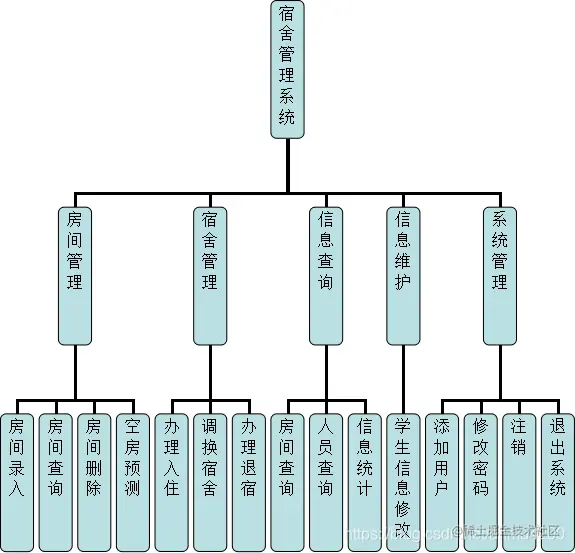

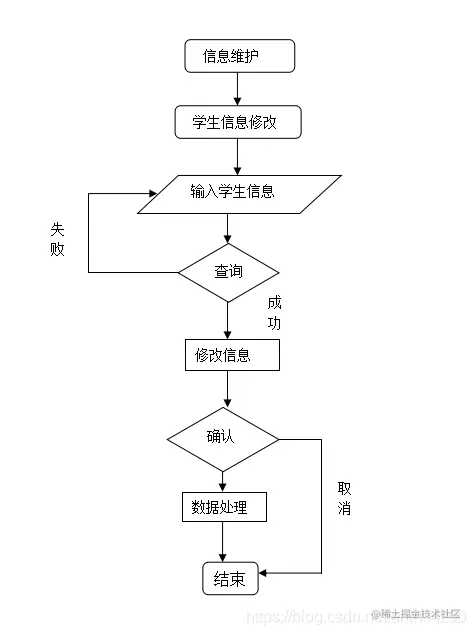

1、系统功能流程图： 在这里插入图片描述2、E-R图：

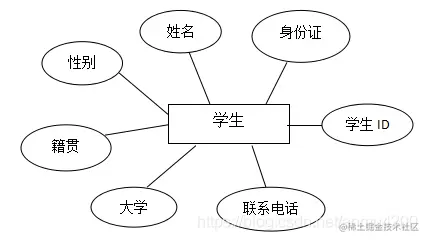

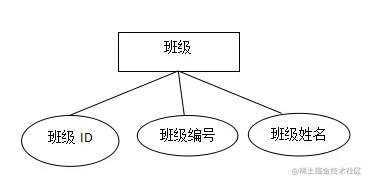

学生实体E-R图： 在这里插入图片描述 班级实体E-R图： 在这里插入图片描述 宿舍实体E-R图： 在这里插入图片描述 用户实体E-R图： 在这里插入图片描述 3、子模块流程图： 用户管理流程： 在这里插入图片描述 房间管理： 在这里插入图片描述 信息维护流程： 在这里插入图片描述

技术点总结

jdk版本：1.7 tomcat: 7.0 数据库：mysql 开发工具：eclipse

代码

dao层 AdminDao.java

package com.dao;

import com.db.DBHelper;
import com.bean.AdminBean;

import java.util.*;
import java.sql.*;

public class AdminDao {

	//验证登录
	public String CheckLogin(String username, String password){
		String id = null;
		String sql="select * from Admin where Admin_Username='"+username+"' and Admin_Password='"+password+"'";
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		try{
			stat = conn.createStatement();
			rs = stat.executeQuery(sql);
			while (rs.next()) {
				id = rs.getString("Admin_ID");
			}
		}
		catch(SQLException ex){}
		return id;
	}
	//验证密码
	public boolean CheckPassword(String id, String password){
		boolean ps = false;
		String sql="select * from Admin where Admin_ID='"+id+"' and Admin_Password='"+password+"'";
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		try{
			stat = conn.createStatement();
			rs = stat.executeQuery(sql);
			while (rs.next()) {
				ps=true;
			}
		}
		catch(SQLException ex){}
		return ps;
	}
	//获取列表
	public List<AdminBean> GetList(String strwhere,String strorder){
		String sql="select * from Admin";
		if(!(isInvalid(strwhere)))
		{
			sql+=" where "+strwhere;
		}
		if(!(isInvalid(strorder)))
		{
			sql+=" order by "+strorder;
		}
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		List<AdminBean> list=new ArrayList<AdminBean>();
		try{
			stat = conn.createStatement();
			rs = stat.executeQuery(sql);
			while(rs.next()){
				AdminBean cnbean=new AdminBean();
				cnbean.setAdmin_ID(rs.getInt("Admin_ID"));
				cnbean.setAdmin_Username(rs.getString("Admin_Username"));
				cnbean.setAdmin_Password(rs.getString("Admin_Password"));
				cnbean.setAdmin_Name(rs.getString("Admin_Name"));
				cnbean.setAdmin_Sex(rs.getString("Admin_Sex"));
				cnbean.setAdmin_Tel(rs.getString("Admin_Tel"));
				list.add(cnbean);
			}
		} catch (SQLException e) {
			e.printStackTrace();
		} finally {
			try {
				if (conn != null)
					conn.close();
				if (stat != null)
					stat.close();
				if (rs != null)
					rs.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
		return list;
	}

	//获取指定ID的实体Bean
	public AdminBean GetBean(int id){
		String sql="select * from Admin where Admin_ID="+id;
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		AdminBean cnbean=new AdminBean();
		try{
			stat = conn.createStatement();
			rs = stat.executeQuery(sql);
			while(rs.next()){
				cnbean.setAdmin_ID(rs.getInt("Admin_ID"));
				cnbean.setAdmin_Username(rs.getString("Admin_Username"));
				cnbean.setAdmin_Password(rs.getString("Admin_Password"));
				cnbean.setAdmin_Name(rs.getString("Admin_Name"));
				cnbean.setAdmin_Sex(rs.getString("Admin_Sex"));
				cnbean.setAdmin_Tel(rs.getString("Admin_Tel"));

			}
		} catch (SQLException e) {
			e.printStackTrace();
		} finally {
			try {
				if (conn != null)
					conn.close();
				if (stat != null)
					stat.close();
				if (rs != null)
					rs.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
		return cnbean;
	}

	//添加
	public void Add(AdminBean cnbean){
		String sql="insert into Admin (";
		sql+="Admin_Username,Admin_Password,Admin_Name,Admin_Sex,Admin_Tel";
		sql+=") values(";
		sql+="'"+cnbean.getAdmin_Username()+"','"+cnbean.getAdmin_Password()+"','"+cnbean.getAdmin_Name()+"','"+cnbean.getAdmin_Sex()+"','"+cnbean.getAdmin_Tel()+"'";
		sql+=")";
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		try{
			stat = conn.createStatement();
			stat.executeUpdate(sql);
		} catch (SQLException e) {
			e.printStackTrace();
		} finally {
			try {
				if (conn != null)
					conn.close();
				if (stat != null)
					stat.close();
				if (rs != null)
					rs.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}
	//修改
	public void Update(AdminBean cnbean){
		String sql="update Admin set ";
		sql+="Admin_Username='"+cnbean.getAdmin_Username()+"',";
		sql+="Admin_Password='"+cnbean.getAdmin_Password()+"',";
		sql+="Admin_Name='"+cnbean.getAdmin_Name()+"',";
		sql+="Admin_Sex='"+cnbean.getAdmin_Sex()+"',";
		sql+="Admin_Tel='"+cnbean.getAdmin_Tel()+"'";

		sql+=" where Admin_ID='"+cnbean.getAdmin_ID()+"'";
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		try{
			stat = conn.createStatement();
			stat.executeUpdate(sql);
		} catch (SQLException e) {
			e.printStackTrace();
		} finally {
			try {
				if (conn != null)
					conn.close();
				if (stat != null)
					stat.close();
				if (rs != null)
					rs.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}
	//删除
	public void Delete(String strwhere){
		String sql="delete Admin where ";
		sql+=strwhere;
		Statement stat = null;
		ResultSet rs = null;
		Connection conn = new DBHelper().getConn();
		try{
			stat = conn.createStatement();
			stat.executeUpdate(sql);
		} catch (SQLException e) {
			e.printStackTrace();
		} finally {
			try {
				if (conn != null)
					conn.close();
				if (stat != null)
					stat.close();
				if (rs != null)
					rs.close();
			} catch (SQLException e) {
				e.printStackTrace();
			}
		}
	}


	//判断是否空值
	private boolean isInvalid(String value) {
		return (value == null || value.length() == 0);
	}

	//测试
	public static void main(String[] args) {
		System.out.println("");
	}

}

bean类： AdminBean：

package com.bean;
public class AdminBean {

    private int Admin_ID ;
    private String Admin_Username ;
    private String Admin_Password ;
    private String Admin_Name ;
    private String Admin_Sex ;
    private String Admin_Tel ;
	public int getAdmin_ID() {
		return Admin_ID;
	}
	public void setAdmin_ID(int adminID) {
		Admin_ID = adminID;
	}
	public String getAdmin_Username() {
		return Admin_Username;
	}
	public void setAdmin_Username(String adminUsername) {
		Admin_Username = adminUsername;
	}
	public String getAdmin_Password() {
		return Admin_Password;
	}
	public void setAdmin_Password(String adminPassword) {
		Admin_Password = adminPassword;
	}
	public String getAdmin_Name() {
		return Admin_Name;
	}
	public void setAdmin_Name(String adminName) {
		Admin_Name = adminName;
	}
	public String getAdmin_Sex() {
		return Admin_Sex;
	}
	public void setAdmin_Sex(String adminSex) {
		Admin_Sex = adminSex;
	}
	public String getAdmin_Tel() {
		return Admin_Tel;
	}
	public void setAdmin_Tel(String adminTel) {
		Admin_Tel = adminTel;
	}


}

action层： AdminAction:

package com.action;

import java.io.PrintWriter;
import java.util.List;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import org.apache.struts2.ServletActionContext;
import com.opensymphony.xwork2.ActionSupport;

import com.bean.*;
import com.dao.*;


public class AdminLog extends ActionSupport {

	//下面是Action内用于封装用户请求参数的属性
	private List<BuildingBean> buildinglist;
	private List<DomitoryBean> domitorylist;

	public List<BuildingBean> getBuildinglist() {
		return buildinglist;
	}

	public void setBuildinglist(List<BuildingBean> buildinglist) {
		this.buildinglist = buildinglist;
	}

	public List<DomitoryBean> getDomitorylist() {
		return domitorylist;
	}

	public void setDomitorylist(List<DomitoryBean> domitorylist) {
		this.domitorylist = domitorylist;
	}

	private String BuildingID;
	private String DomitoryID;
	public String getBuildingID() {
		return BuildingID;
	}

	public void setBuildingID(String buildingID) {
		BuildingID = buildingID;
	}

	public String getDomitoryID() {
		return DomitoryID;
	}

	public void setDomitoryID(String domitoryID) {
		DomitoryID = domitoryID;
	}

	//处理用户请求的execute方法
	public String execute() throws Exception {

		//解决乱码，用于页面输出
		HttpServletResponse response=null;
		response=ServletActionContext.getResponse();
		response.setContentType("text/html;charset=UTF-8");
		response.setCharacterEncoding("UTF-8");
		PrintWriter out = response.getWriter();

		//创建session对象
		HttpSession session = ServletActionContext.getRequest().getSession();
		//验证是否正常登录
		if(session.getAttribute("id")==null){
			out.print("<script language='javascript'>alert('请重新登录！');window.location='Login.jsp';</script>");
			out.flush();out.close();return null;
		}

		//查询楼宇
		buildinglist=new BuildingDao().GetList("","Building_Name");
//		System.out.println(BuildingID);
		//查询条件
		String strWhere="1=1 ";
		if(!(isInvalid(BuildingID)))
		{
			strWhere+=" and Domitory_BuildingID='"+BuildingID+"'";
		}
		else{
			strWhere+=" and 1=2";
		}
		//查询寝室
		domitorylist=new DomitoryDao().GetList(strWhere,"Domitory_Name");

		return SUCCESS;

	}

	//判断是否空值
	private boolean isInvalid(String value) {
		return (value == null || value.length() == 0);
	}

	//测试
	public static void main(String[] args) {
		System.out.println();
	}

}

StudentManage.java:

package com.action;

import java.io.PrintWriter;
import java.util.List;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import org.apache.struts2.ServletActionContext;
import com.opensymphony.xwork2.ActionSupport;

import com.bean.*;
import com.dao.*;


public class StudentManager extends ActionSupport {

	//下面是Action内用于封装用户请求参数的属性
	private List<StudentBean> list;
	public List<StudentBean> getList() {
		return list;
	}
	public void setList(List<StudentBean> list) {
		this.list = list;
	}
	private String SearchRow;
	private String SearchKey;
	private String State;
	public String getState() {
		return State;
	}
	public void setState(String state) {
		State = state;
	}
	public String getSearchRow() {
		return SearchRow;
	}
	public void setSearchRow(String searchRow) {
		SearchRow = searchRow;
	}
	public String getSearchKey() {
		return SearchKey;
	}
	public void setSearchKey(String searchKey) {
		SearchKey = searchKey;
	}
	//处理用户请求的execute方法
	public String execute() throws Exception {

		//解决乱码，用于页面输出
		HttpServletResponse response=null;
		response=ServletActionContext.getResponse();
		response.setContentType("text/html;charset=UTF-8");
		response.setCharacterEncoding("UTF-8");
		PrintWriter out = response.getWriter();

		//创建session对象
		HttpSession session = ServletActionContext.getRequest().getSession();
		//验证是否正常登录
		if(session.getAttribute("id")==null){
			out.print("<script language='javascript'>alert('请重新登录！');window.location='Login.jsp';</script>");
			out.flush();out.close();return null;
		}
		//查询条件
		String strWhere="1=1";
		if(!(isInvalid(SearchKey)))
		{
			strWhere+=" and "+SearchRow+"='"+SearchKey+"'";
		}
		if(!(isInvalid(State)))
		{
			strWhere+=" and Student_State='"+State+"'";
		}
		else
		{
			strWhere+=" and Student_State='入住'";
		}
		//查询所有
		list=new StudentDao().GetAllList(strWhere,"Student_Name");

		return SUCCESS;

	}

	//判断是否空值
	private boolean isInvalid(String value) {
		return (value == null || value.length() == 0);
	}

	//测试
	public static void main(String[] args) {
		System.out.println();
	}

}

数据连接辅助类： DBHelper.java:

package com.db;

import java.sql.*;

public class DBHelper {
	private String dbUrl="jdbc:mysql://localhost:3306/sushe";
	private String dbUser="root";
	private String dbPassword="123456";
	private String jdbcName="com.mysql.jdbc.Driver";

	//连接数据库
	public Connection getConn(){
		Connection conn = null;
		try{
			Class.forName(jdbcName);
		}
		catch(Exception e){}
		try{
			conn=DriverManager.getConnection(dbUrl,dbUser,dbPassword);
		}
		catch(SQLException ex){}
		return conn;
	}

//    测试
	public static void main(String[] args)
	{
		System.out.println(new DBHelper().getConn());

	}

}

写在最后

码代码不容易，需要的同学可以参考学习，全部代码不能都贴出，如果需要可以+博主V交流获取（Code2Life2） 最后，别忘了一键三连哦

avatar
文章
阅读
粉丝
